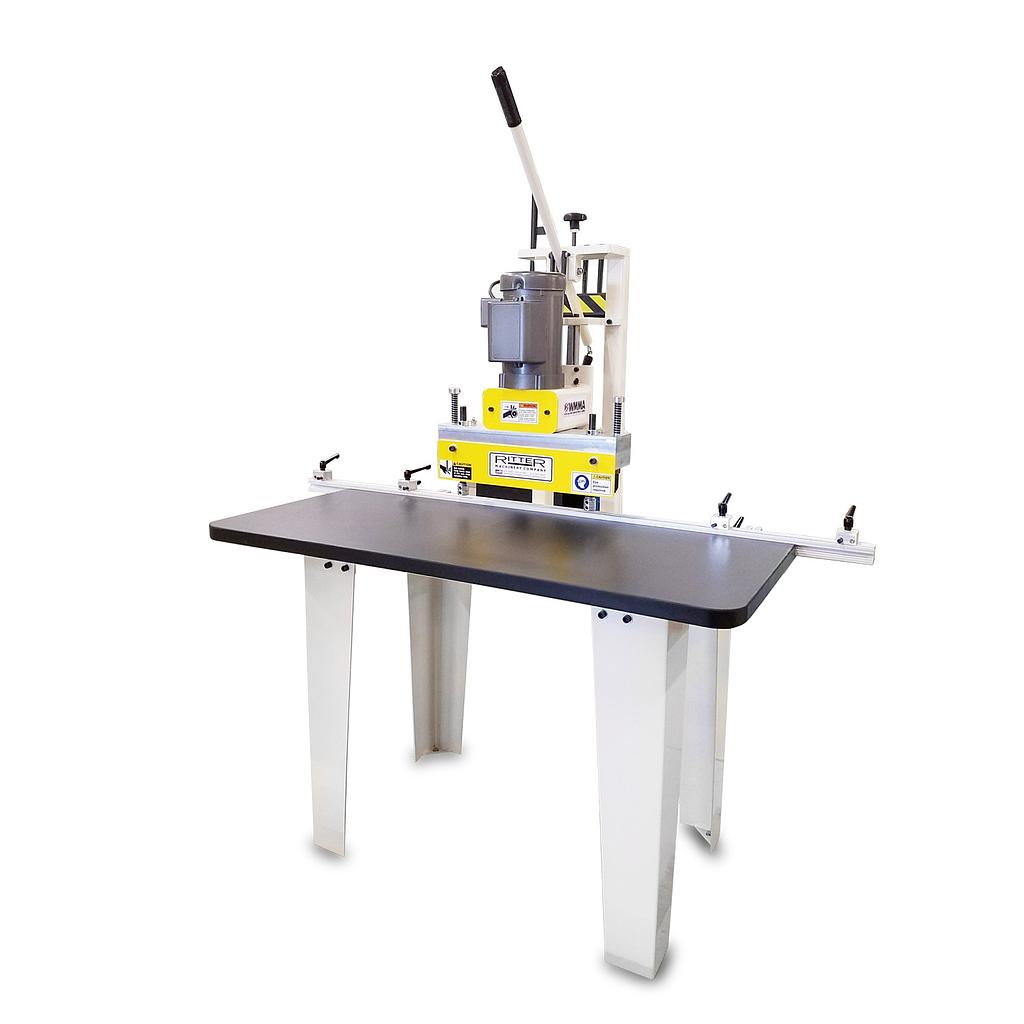

13 Spindle Single Row Line Drill
Standard Features:
- 13-Spindle Gear Driven Drill Head on 32mm Centers
- (7) Right Hand, (6) Left Hand
- 60" Back Fence with (4) Adjustable Material Stops
- Right and Left Hand Work Stations
- (2) Spring Loaded Index Pins
- (2) Spring Operated Material Clamps
- Manually Actuated Boring Cycle
- Spring Return Up Stroke
- Tooling Not Included
Technical Data and Specifications:
- Drive Motor: 0.75 HP
- Spindle Centers: 32mm
- Collet Size: 10mm
- Throat Capacity: 8"
- Maximum Material Thickness: 1.25"
- Electrical: 110V, 1Ø, 60Hz, 8.4A
- Air: N/A
- Work height: 33.25″
- Footprint: 38″ x 60″
- Table Area: 20″ x 48″
Shipping Weight: 508 LBS
Shipping Dimensions: 42″ L x 64″ W x 76" H
| Voltage: 110V, 1Ø, 60Hz |
| Spindles: 13 |
Referencia interna:
R113
